ignition coil – HT55 – CDI

$118.56

High performance improved CDI-coil (Universal)

– Hole spacing 55 mm
– Ignition coil cable length 40cm
– Including spark plug cap with 5kOhm resistance (anti noise)
– Protection hose around Ignition coil cable
– Built to withstand extreme heat and vibration
– Also for engines with very high RPM
– Primary resistance 0,6 Ohm.
– Secondary resistance 4,9 kOhm.

– We provide a wide range of electrical components to fit new and older Japanese and European motorcycles.
– All products are made from high quality, high temperature materials which have proven to be very reliable.
– Our products offer higher power output than OEM counterparts.
– Products are new, eliminating the need for customers to send in the old ones.

Vectriq

Category: SKU: CARHT055 VQ

Description

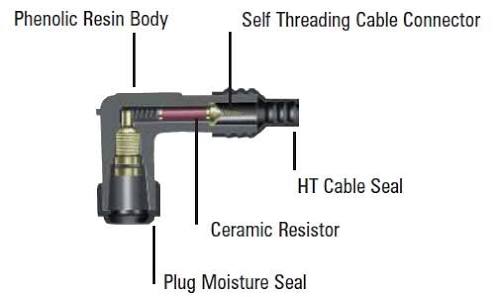

About the cap plug:
– Highly Durable Phenolic Resin and EPDM Rubber
– Ceramic Resistors Ensure Optimum Performance and Reliability
– Built to Withstand Extreme Heat and Vibration
– Prevents Flashover
– Ensures Optimal Service Life and Performance

This ignition coil is used in the models below.
Please note that this (small) list is for reference use only.
We do our best to keep this up-to-date:
Honda CR60R – 1983 1984
Honda CR80R – 1980 – 2002
Honda CR85R – 2003 2004 2005 2006 2007 2008 2009
Honda TRX90 Fourtrax – 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006
Honda ATC110 – 1979 1980 1981 1982 1983 1984 1985
Honda CR125R – 1984 1985 1986 1987 1988 1989 1990 1991 1992
Honda CR125R – 1993 1994 1995 1996 1997 1998 1999 2000 2001
Honda ATC185 – 1980
Honda ATC185S – 1981 1982 1983
Honda ATC200X – 1983 1984 1985 1986 1987
Honda TRX200 Fourtrax – 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994
Honda ATC250R – 1981 1982 1983 1984
Honda CR250R – 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993
Honda CR250R – 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007
Honda TRX250 Fourtrax – 1985 1986
Honda XL250S – 1978 1979 1980 1981
Honda XR250 – 1979 1980
Honda XR250L – 1991 1992 1993 1994 1995 1996
Honda XR250R – 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992
Honda XR250R – 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004
Honda TRX300 Fourtrax – 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000
Honda TRX300EX – 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008
Honda TRX350 Fourtrax – 1986 1987 1988 1989 1990 1991 1992 1993
Honda XR350R – 1983 1984 1985
Honda FL400R Pilot – 1989 1990
Honda TRX400EX Sportrax – 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008
Honda XR400R (Europe) – 1996 1997 1998 1999 2000 2001 2002
Honda XR400R (USA) – 1996 1997 1998 1999 2000 2001 2002 2003 2004
Honda CRF450R – 2002 2003 2004 2005 2006 2007 2008
Honda CR500R – 1984 1985 1986 1987 1988 1989 1990 1991 1992
Honda CR500R – 1993 1994 1995 1996 1997 1998 1999 2000 2001
Honda XR600R – 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000
Honda XR650R – 2000 2001 2002 2003 2004 2005 2006 2007
Kawasaki KX60 – 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992
Kawasaki KX60 – 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003
Kawasaki KX65 – 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014
Kawasaki KX80 – 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990
Kawasaki KX80 (Big Wheel) – 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000
Kawasaki KX85 – 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013
Kawasaki KX100 – 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000
Kawasaki KLF110 – Mojave 1987 1988
Kawasaki KX125 – 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997
Kawasaki KX125 – 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008
Kawasaki KLF185 Bayou – 1985 1986 1987 1988
Kawasaki KDX200 – 1989 1990 1991 1992 1993 1994 1995 1996 1997
Kawasaki KDX200 – 1998 1999 2000 2001 2002 2003 2004 2005 2006
Kawasaki KLT200 – 1981 1982 1983 1984
Kawasaki KLF220 Bayou – 1988 – 2002
Kawasaki KDX250 – 1980 1981 1982 1983 1984 1985
Kawasaki KLT250 – 1982 1983
Kawasaki KLT250 Prairie – 1983 1984 1985
Kawasaki KX250 – 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994
Kawasaki KX250 – 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008
Kawasaki KEF300 Lakota – 1995 1996 1997 1998 1999 2000
Kawasaki KEF300 Lakota – Sport 2001 2002 2003 2004
Kawasaki KLF300 Bayou – 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995
Kawasaki KLF300 Bayou – 1996 1997 1998 1999 2000 2001 2002 2003 2004
Kawasaki KLX300R – 1996 1997 1998 1999
Kawasaki KX400 – 1975 1976
Kawasaki KX500 – 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993
Kawasaki KX500 – 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004
Suzuki RM80 – 1977 1978 1979 1980 1981 1982 1983 1984 1985 1986 1987 1988
Suzuki RM80 – 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001
Suzuki RM85 – 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012
Suzuki RM125 – 1975 – 2008
Suzuki LT230E GE – 1985 1986 1987 1988 1989 1990 1991 1992 1993
Suzuki LT230S – 1985 1986 1987 1988
Suzuki LT-F250 LT-F4WD – 1987 1998
Suzuki RM250 – 1982 – 2008
Yamaha PW50 Zinger – 1981 – 2011
Yamaha YFM225 Moto-4 – 1986 1987 1988
Yamaha YFB250 Timberwolf 2WD 4WD – 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001
Yamaha YFM350 Warrior – 2002 2003 2004
Yamaha YFZ350 Banshee – 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010
Yamaha YFM600 Grizzly – 1998 1999 2000 2001 2002
Yamaha YFM660 Raptor – 2001 2002 2003 2004 2005

Model: CARHT055 Ignition Coil
000.029.050 S40 20
